1. Understanding the Basics

So, you're diving into the world of solar panels, huh? Awesome! You're probably buzzing with questions, and one of the biggies is likely: "Series or parallel connections — which way is the right way to wire these things up?" Well, there's no single "right" answer, my friend. It all boils down to your specific setup, your goals, and maybe a dash of personal preference. Think of it like choosing between coffee and tea — both have their merits! The keyword here is connection. Series and parallel configurations impact the voltage and current your solar array produces.

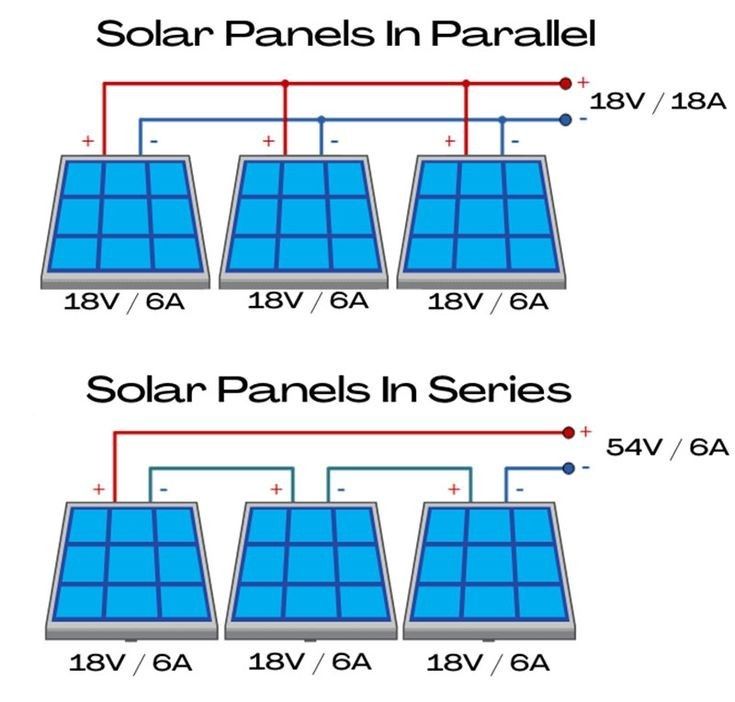

Let's get this straight: series connections increase the voltage while keeping the current the same. Imagine stacking batteries end-to-end in a flashlight. That's series! Parallel connections, on the other hand, increase the current while maintaining the voltage. Think of multiple garden hoses feeding into one main pipe — more flow (current), but the pressure (voltage) stays consistent. Solar panels are similar, voltage is equivalent to the panel voltage, and current is equivalent to the panel current.

But what does all this mean in the real world? Well, most inverters (the gizmos that convert DC power from your panels into AC power for your home) have specific voltage input requirements. Some like higher voltages, while others prefer lower ones. Matching your panel configuration to your inverter's sweet spot is crucial for maximizing efficiency. If you mismatch these, youre leaving power (and money!) on the table.

Power, measured in watts, is the name of the game. Ultimately, you want to maximize the power output of your solar array. Power is calculated by multiplying voltage and current (Power = Voltage x Current). So, whether you achieve that high power through high voltage (series) or high current (parallel) depends on what your inverter is craving. Consider your solar panels connections as important factor.

Series Connections

2. The Ins and Outs of Series Wiring

Okay, let's zoom in on series connections. When you connect solar panels in series, you're essentially adding their voltages together. So, if you have three 12-volt panels wired in series, you'll end up with a 36-volt output. The current, however, stays the same as a single panel. It's like lining up a bunch of singers to hit one super high note — same volume, much higher pitch! You may want to use higher series voltage depending on your needs.

Series connections are generally preferred when you have a long distance to run the wires from your panels to your inverter. Higher voltage means lower current for the same amount of power. Lower current translates to less voltage drop in the wires, meaning more of the precious solar energy actually makes it to your inverter. Think of it like using a wide pipe versus a narrow one — less resistance with the wider pipe.

However, there's a potential downside to series connections: shading. If even one panel in a series string is shaded, it can significantly reduce the output of the entire string. Imagine one of those singers suddenly losing their voice — the whole performance suffers. This is because the shaded panel acts as a bottleneck, restricting the flow of current. Shading is one of the key considerations when determining which way to configure your panels.

Series connections are often favored for grid-tied systems where the inverter requires a higher DC voltage to operate efficiently. Many modern inverters, particularly those designed for residential use, are optimized for higher voltage inputs. Matching the string voltage to the inverter's requirements ensures optimal performance and maximum energy harvest.

Parallel Connections

3. Unleashing the Power of Parallel Wiring

Now, let's swing over to parallel connections. When you connect solar panels in parallel, you're adding their currents together while maintaining the voltage of a single panel. So, if you have three panels each producing 5 amps, wiring them in parallel will give you a total of 15 amps, while the voltage remains the same. Think of it like adding more lanes to a highway — same speed, much more traffic! Parallel solar panels are often used when shading is a common issue.

Parallel connections are more forgiving when it comes to shading. If one panel is shaded, the other panels can still operate at full capacity. It's like if one lane of that highway is blocked — traffic can still flow in the other lanes. This makes parallel wiring a good choice for installations where shading is a concern, such as in areas with trees or nearby buildings. A partial shading condition can have significant impact.

However, parallel connections can be less efficient for long wire runs. Higher current means more voltage drop in the wires, so you'll need thicker wires to minimize losses. Think of it like trying to push a lot of water through a narrow pipe — it's going to be a struggle. Therefore, for long distances, series connections are generally preferred.

Parallel connections are often used in off-grid systems where a lower voltage is desired, such as when charging a 12-volt battery bank. They're also useful when you want to add more panels to an existing system without changing the voltage. Parallel connections are great for boosting current.

The Best of Both Worlds

4. Combining Series and Parallel for Optimal Performance

Guess what? You don't have to choose between series and parallel! You can actually combine them to create a hybrid configuration that best suits your needs. For example, you could wire several panels in series to achieve a desired voltage, and then wire multiple series strings in parallel to increase the current. It's like creating your own custom blend of coffee — the perfect balance of flavor and strength!

Hybrid configurations offer the flexibility to optimize both voltage and current, allowing you to perfectly match your panels to your inverter and your specific energy needs. This approach can be particularly useful for larger solar installations or systems with complex shading patterns. In this case, carefully consider the advantages of both configuration.

Designing a hybrid configuration requires careful planning and a good understanding of your system's requirements. You'll need to consider the voltage and current ratings of your panels, the input voltage range of your inverter, and the potential for shading. But with a little bit of know-how, you can create a system that delivers maximum performance and reliability.

Ultimately, there's no single "best" way to connect solar panels. The optimal configuration depends on your specific circumstances. By understanding the pros and cons of series and parallel connections, and by considering the benefits of hybrid configurations, you can make an informed decision that will help you get the most out of your solar investment. Think of it as assembling your perfect solar team.

Matching Your Panels to Your Inverter

5. Ensuring Compatibility and Maximizing Efficiency

We've talked a lot about series, parallel, voltage, and current. But here's a key point: none of that matters if you don't match your solar panel configuration to your inverter! Your inverter is the brain of your solar system, converting the DC power from your panels into AC power that you can use in your home. It has specific voltage and current input requirements, and if you don't meet those requirements, your system won't operate efficiently — or at all!

Before you start wiring up your panels, carefully check the specifications of your inverter. Pay close attention to the maximum and minimum DC input voltage, as well as the maximum DC input current. Make sure that your panel configuration falls within these ranges. A mismatch can not only reduce efficiency but also potentially damage your inverter.

Many modern inverters have a wide input voltage range, which allows for more flexibility in panel configuration. However, it's still important to stay within the specified limits. Consider using an online solar panel string calculator to help you determine the optimal number of panels to connect in series and parallel for your chosen inverter. These calculators take into account the voltage and current characteristics of your panels and inverter to ensure compatibility.

Think of it like pairing the right key with the right lock. Only the correct match will open the door to maximum solar power generation. By carefully matching your panels to your inverter, you can ensure that your solar system operates at peak performance, saving you money and reducing your carbon footprint. It is always important to ensure compatibility.
